Convex HullMinimum Bounding BoxUnrotate an Image

The convex hull is the is the smallest area convex polygon containing the set of points inside it. The convex hull may be visualized as the shape enclosed by a rubber band stretched around the set of points.

The convex-hull string format returns a list of x,y coordinates of the vertices of the convex-hull polygon containing all the non-black pixels within it.

    magick [-fuzz XXX%] [-define convex-hull:background-color] -format "%[convex-hull]" info:


where the string format is sensitive to an optional -fuzz value and to an optional background color specified by the define. The command above will find the background color automatically according to the fuzz value unless the background color is defined. The fuzz value defaults to 0 when not specified.

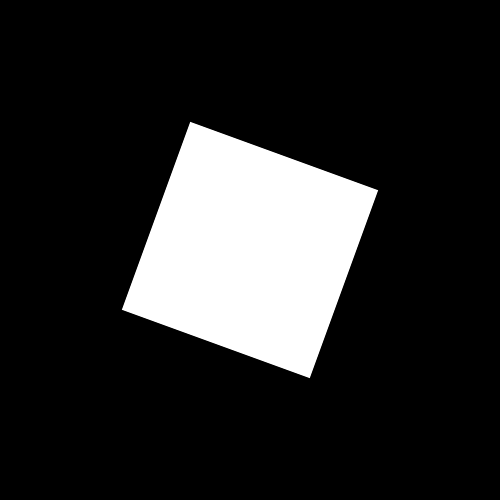

For example, consider the following white rectangle on a black background:

    [Convex Hull]

The convex hull set of points may be computed as:

    magick rect.png -format "%[convex-hull]" info:
    190,121 193,122 281,154 377,189 378,190 377,193 345,281 310,377 309,378 306,377 218,345 122,310 121,309 122,306 154,218 189,122 190,121


The convex hull may also be drawn as a polygon (filled or unfilled) using -draw as follows:

    magick rect.png -set option:hull "%[convex-hull]" -fill none -stroke red -strokewidth 1 -draw "polygon %[hull]" blocks_hull.png

Here is an example using a non-convex shaped image on a black background:

    [Convex Hull Blocks]
    magick blocks_black.png -set option:hull "%[convex-hull]" -fill none -stroke red -strokewidth 1 -draw "polygon %[hull]" blocks_hull.png
    [Convex Hull Blocks Closure]

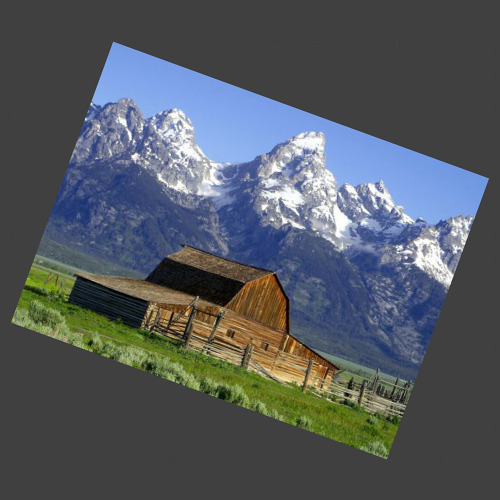

Finally, here is an example with a non-constant, non-black background using -fuzz to determine the background color:

    [Convex Hull Barn]

Now let's highlight the convex hull of the image foreground object:

    magick barn_rot20.png -fuzz 10% -set hull "%[convex-hull]" -fill none -stroke red -strokewidth 1 -draw "polygon %[hull]" barn_rot20_hull.png
    [Convex Hull Barn Closure]

Minimum Bounding Box

Similar to the convex hull of the image foreground object(s), is the minimum bounding box. Use %[minimum-bounding-box] to return the points that make up the bounding box. In addition, these properties are set: minimum-bounding-box:area, minimum-bounding-box:width, minimum-bounding-box:height, and minimum-bounding-box:angle.

    magick barn_rot20.png -fuzz 10% -background black -set MBR "%[minimum-bounding-box]" -fill none -stroke red -strokewidth 1 -draw "polygon %[MBR]" barn-mbr.png

Unrotate an Image

...
